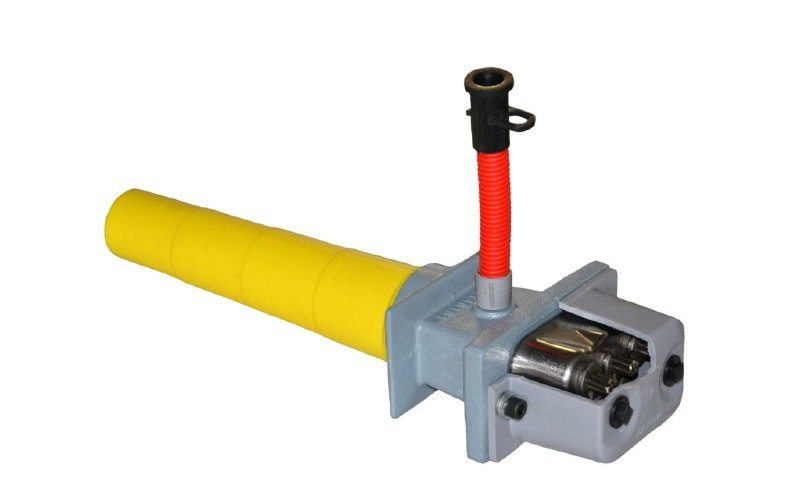

Anchorages
Single strand anchorages are produced for both bonded and unbonded applications; they are supplied to the site with all the accessories necessary for their installation.
They are produced in compliance with the guideline ETAG 013.
The E series single strand anchorage is made of the following parts: steel plate in C40-45 UNI EN 10083/1, in the EX version encapsulated in H.D.P.E., wedges in steel 16NiCr4Pb UNI EN 10277-4 and connection in H.D.P.E. to connect the plate to the wire strand. The anchorage is tested for use with the T15, T15S and T15C wire strand. Anchorages have been awarded with the European Technical approval for single strand systems.
1E15 single strand anchorages are supplied with two holes to connect with the formwork. The anchorage of the steel plate to the formwork wood panel is guaranteed by two self-tapping screws.
The rear connection guarantees a proper protection of the wire strand without polyvinyl chloride in the area of connection to the anchorage. The unbonded application can be carried out with a metallic sheath and a polyethylene sheath. Sheaths are provided with proper connections for grouting and vent to guarantee a correct grouting after tensioning.
Cables can be supplied cut to size directly on site, rolled up with a diameter of 2.2 m and labelled for identification and a quick allocation.
This type of provision allows the following advantages to the site:
They are produced in compliance with the guideline ETAG 013.
The E series single strand anchorage is made of the following parts: steel plate in C40-45 UNI EN 10083/1, in the EX version encapsulated in H.D.P.E., wedges in steel 16NiCr4Pb UNI EN 10277-4 and connection in H.D.P.E. to connect the plate to the wire strand. The anchorage is tested for use with the T15, T15S and T15C wire strand. Anchorages have been awarded with the European Technical approval for single strand systems.
1E15 single strand anchorages are supplied with two holes to connect with the formwork. The anchorage of the steel plate to the formwork wood panel is guaranteed by two self-tapping screws.
The rear connection guarantees a proper protection of the wire strand without polyvinyl chloride in the area of connection to the anchorage. The unbonded application can be carried out with a metallic sheath and a polyethylene sheath. Sheaths are provided with proper connections for grouting and vent to guarantee a correct grouting after tensioning.
Cables can be supplied cut to size directly on site, rolled up with a diameter of 2.2 m and labelled for identification and a quick allocation.
This type of provision allows the following advantages to the site:
- considerable reduction of the scraps cutting
- reduction of the storage areas of materials at the construction site
- reduction commitment of lifting equipment on site

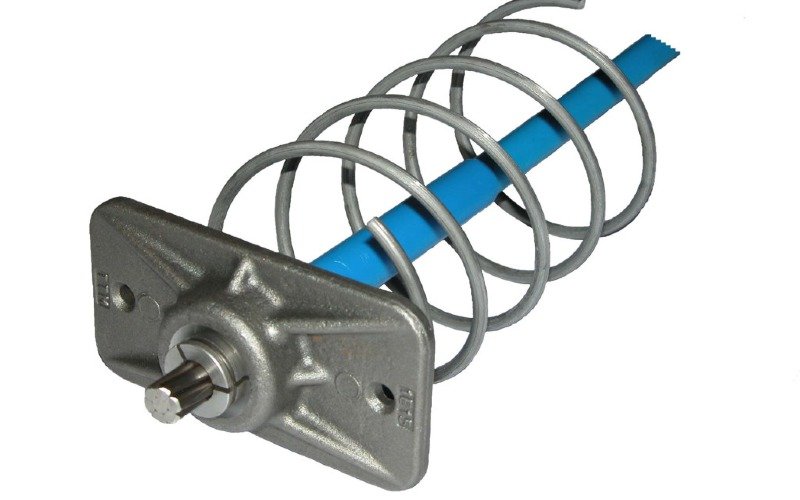

Active Anchorages
- Unbonded post-tensioning
- Unbonded encapsulated post-tensioning
- Bonded post-tensioning
- Encapsulated bonded post-tensioning
- Bonded post-tensioning with encapsulated anchorage

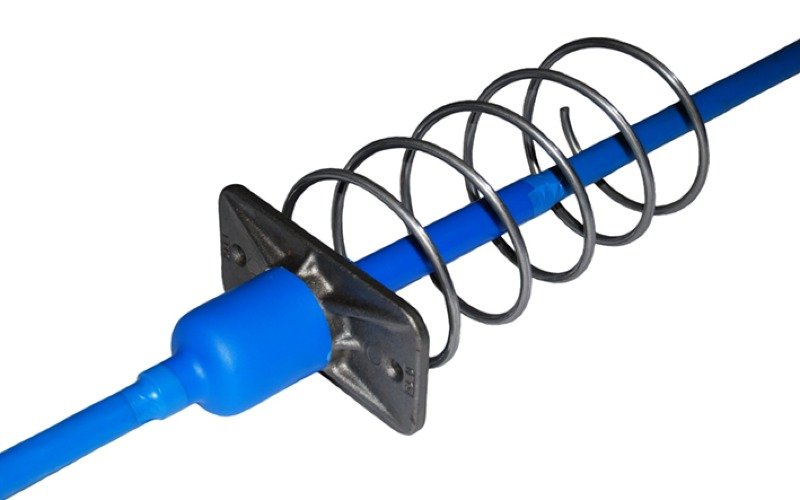

Through Anchorages
- Through unbonded post-tensioning
- Through bonded post-tensioning
- Encapsulated through bonded post-tensioning
- Encapsulated through unbonded post-tensioning

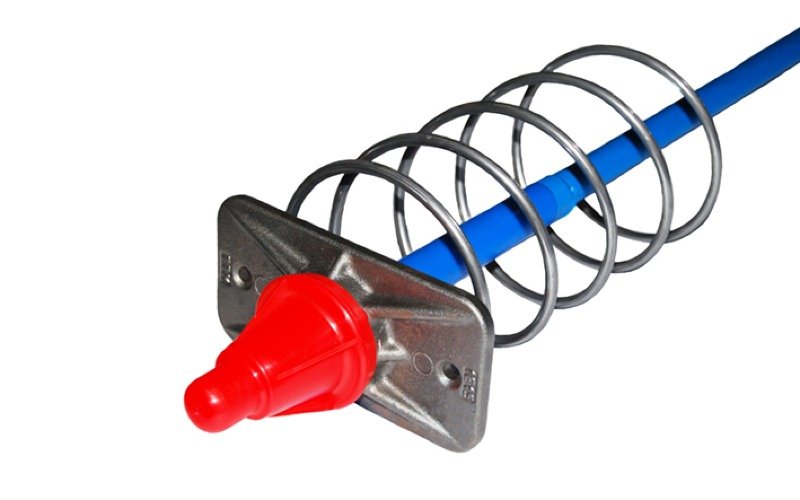

Passive Anchorage
- Unbonded post-tensioning
- Unbonded encapsulated post-tensioning
- Bonded post-tensioning
- Encapsulated bonded post-tensioning
- Bonded post-tensioning with encapsulated anchorage

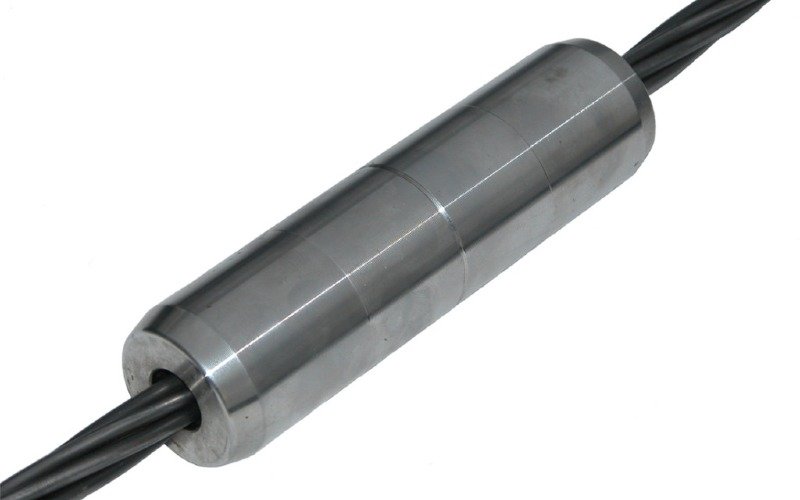

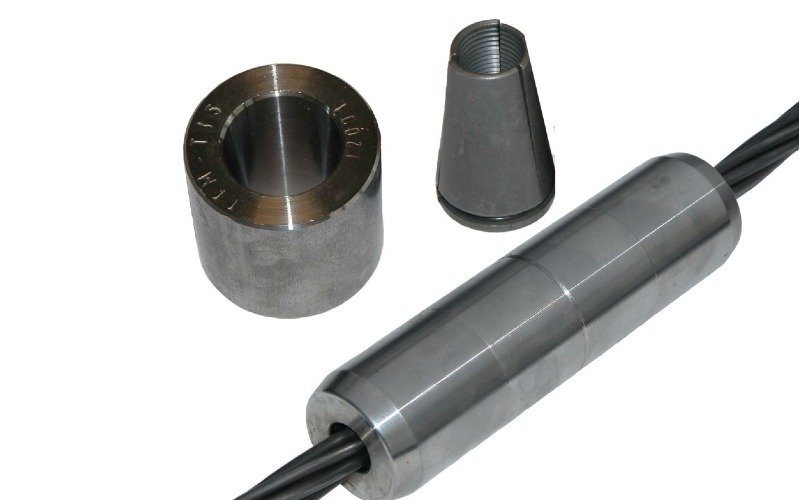

Connections G series
The connection on single strand cables is carried out by using a sleeve that allows to guarantee their connection. It can be bonded "G" and unbonded "GX". Both applications can be used with all the versions of an active anchorage.

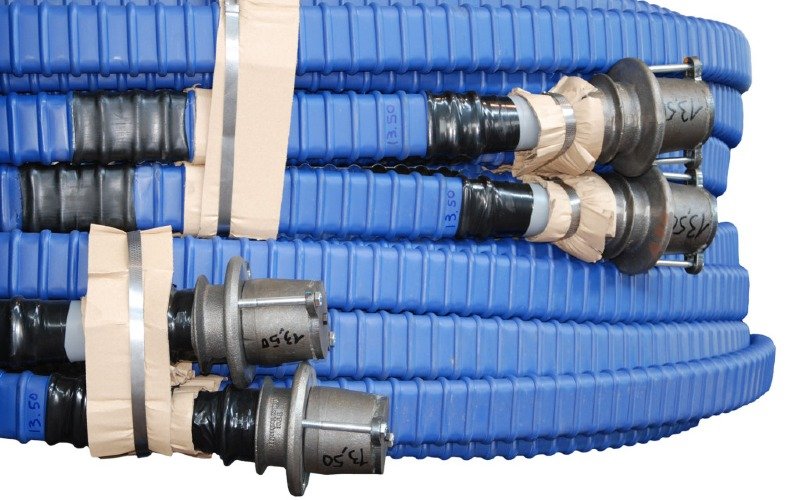

Pre Blocked Anchorage for slab type M and D
For use on slabs, preassembled cables can be supplied with the passive anchorage preblocked at one end, which are ready for the installation on site and assembled from factory

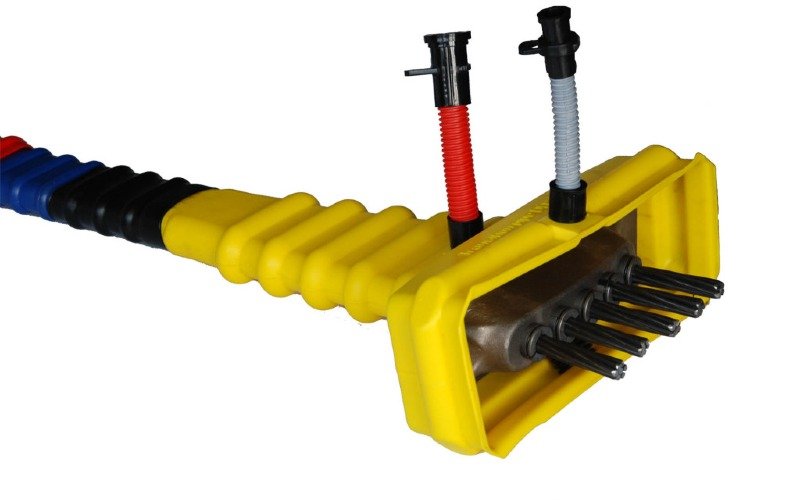

LX Series
